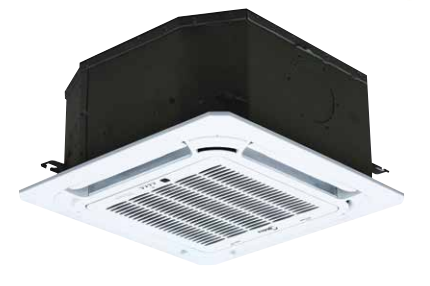

Compact 4-way Cassette

Product Features:

– Super Slim round flow cassette grill – From 205mm high
– 360-degree Round flow means no dead spots

Product Benefits:

  • Sleep Mode
  • Auto Restart
  • Auto Defrosting
  • Fresh Air
  • Anti-Cold Air Function
  • Built-in Drain Pump
  • Independent Dehumidification
  • Air Flow Panel
Categories: ,

Description

Specifications:

TEC-12000CFWC TEC-18000CFWC
Power supply V-ph-HZ 220-240-1-50 220-240-1-50
Cooling performance
Capacity Btu/h 12000 18000
Input W 1252 1954
current A 5.9 9.1
EER W/W 2.96 2.45
Heating performance
Capacity Btu/h 12700 19500
Input W 1130 1838
current A 5.48 8.5
COP W/W 3.23 3.11
Indoor Unit
Indoor Air flow (Hi/Mi/Lo) m3/h 650/550/430 810/650/530
Noise level (Hi/Mi/Lo)indoor dB(A) 40/35/31 46/40/35
Dimension (LxWxH) mm 570x570x260 570x570x260
Packing (WLxWxH)(body) mm 655x655x290 655x655x290
Dimension (LxWxH)(panel) mm 647x647x50 647x647x50
Packing (WLxWxH)(panel) mm 715x715x123 715x715x123
Net/Gross weight(body) kg 14.5/17 16.5/19
Net/Gross weight(panel) kg 2.5/4.5 2.5/4.5
Outdoor Unit
Outdoor noise level dB(A) 43 54
Dimension (LxWxH) mm 780x250x547 762x282x593
Packing (WLxWxH) mm 910x335x585 887x355x645
Net/Gross weight kg 32/34 38/40
Refrigerant type/quantity
Type R410A R410A
Charged volume kg 0.96 1.4
Refrigerant piping
Liquid side/gas side mm 6.35/12.7 6.35/12.7
(inch) (1/4″/1/2″) (1/4″/1/2″)
Max. pipe length m 15 25
Max. difference in level m 8 15
