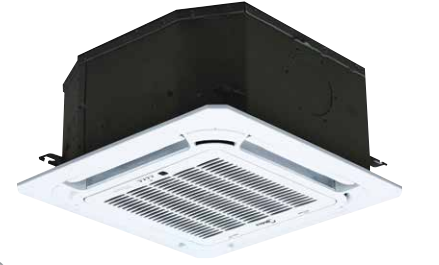

Compact 4-way Cassette DC Inverter

Product Features:

– Super Slim round flow cassette grill – From 205mm high
– 360-degree Round flow means no dead spots

Product Benefits:

  • Sleep Mode
  • Auto Restart
  • Auto Defrosting
  • Fresh Air
  • Anti-Cold Air Function
  • Built-in Drain Pump
  • Independent Dehumidification
  • Air Flow Panel
Categories: ,

Description

Specifications:

TEC-12000CFWC-DCI TEC-18000CFWC-DCI
Power supply V-ph-HZ 220-240-1-50 220-240-1-50
Cooling performance
Capacity Btu/h 13680-12000-4800 19260-18000-6120
Input W 1250-1030-310 2070-1550-550
current A 4.71 7.4
EER W/W 3.41 3.41
Heating performance
Capacity Btu/h 15340-13000-4550 20800-20000-4800
Input W 1390-1050-370 2020-1610-560
current A 4.2 7.1
COP W/W 3.63 3.64
Indoor Unit
Indoor Air flow (Hi/Mi/Lo) m3/h 680/600/400 860/710/560
Noise level (Hi/Mi/Lo)indoor dB(A) 41/38/35 42/41/38
Dimension (LxWxH) mm 570x570x260 570x570x260
Packing (WLxWxH)(body) mm 655x655x290 655x655x290
Dimension (LxWxH)(panel) mm 647x647x50 647x647x50
Packing (WLxWxH)(panel) mm 715x715x123 715x715x123
Net/Gross weight(body) kg 15.5/18.5 18/21
Net/Gross weight(panel) kg 2.5/4.5 2.5/4.5
Outdoor Unit
Outdoor noise level dB(A) 54 58
Dimension (LxWxH) mm 761x279x593 762x282x593
Packing (WLxWxH) mm 887x355x645 887x355x645
Net/Gross weight kg 37/40 42/44
Refrigerant type/quantity
Type R410A R410A
Charged volume kg 1.13 1.32
Refrigerant piping
Liquid side/gas side mm 6.35/12.7 6.35/12.7
(inch) (1/4″/1/2″) (1/4″/1/2″)
Max. pipe length m 15 25
Max. difference in level m 8 12
